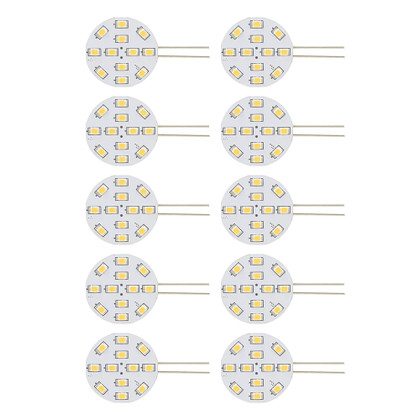

CAD DrawingCAD Drawing 2CAD Drawing 341168 Bulb Cool White *10-Pack
Specifications:
- G4 Wafer Side-Pin
- Volts: 12/24 VDC
- LEDs: 12 SMD2835
- Base: G4 Bi-Pin
- Lumen: 170 WW, 190 CW
- Amps: 0.17 @ 12 Volt
- Watts: 2.0
- 10-Pack
Note: Light fixtures vary in size and shape. For optimum output, LED bulbs 41030 and 41011 feature 25mm (1") long pins, which are designed to be trimmed for best fit. The idea is to center the wafer bulb inside the reflector to provide best illumination.
Manufacturer : Scandvik
Manufacturer Part No : 41168
UPC : 786142411682
