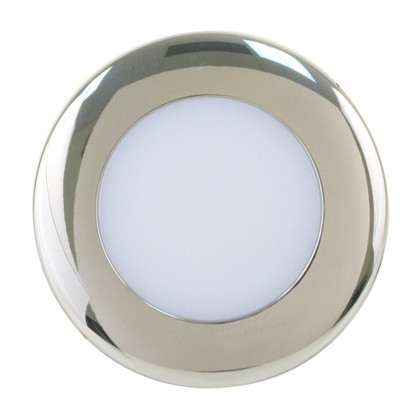

CAD DrawingCAD Drawing 2CAD Drawing 3A2.5 4 Color Downlight with Stainless Steel Trim - 8-30V
Scandvik’s A2.5 LED Down Light with class-leading output, sealed weatherproof construction, and simple 2-wire installation is a favorite amongst boatbuilders. Intelligent circuitry allows color changes from white to blue, red, and green without specialized switches or controllers. Only a simple 2-position (on/off) toggle switch is needed. Switch the light off and on again within 1.5 seconds to cycle through each of the four colors. Turning the light off for more than 1.5 seconds resets the light to white.
Features:
- Easy to install, spring-loaded butterfly clips hold the A2.5 firmly in place
- Works on 12V & 24V systems
- The light colors are white, blue, red, and green
- 2 in. mounting hole
- Recessed mount with spring clips
- 286 lumens
- IP67
Applications:
- This 316 stainless steel fixture is suitable for overhead exterior locations such as T-tops, hard tops, and mezzanines
*The "P" within the part number indicates retail packaging
Manufacturer : Scandvik
Manufacturer Part No : 41416P
