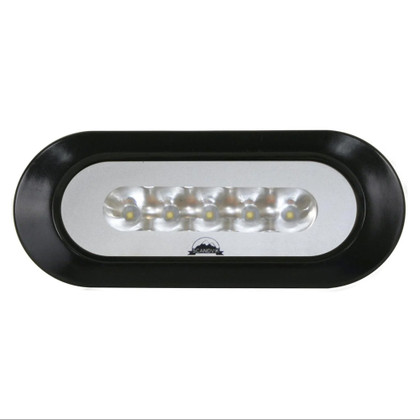

CAD DrawingCAD Drawing 2CAD Drawing 3Flush Mount Spreader Light - Black
The third-generation flush-mounted spreader light features five 3-watt LEDs to provide plenty of illumination. Composite trim ring snaps over housing for a finished look. Mounts with two screws, concealed by the trim ring, on either side of the fixture. This latest version adds one more LED for a total of 5. The redesign still allows this updated model to fit in the same cut-out as the older models, to make upgrades easy.
Features:
- 12/24 V - 12 W
- Polycarbonate Lens
- UV Resistant
- Hidden Mounting Screws
- Cool white LED color (5,500 - 6,300K)
- Temperature of LED: less than 158° with 77° ambient temperature
- Five 3 Watt Samsung 3535 LEDs
- 1,000 Lumens
- Equivalent to 120 Watt Halogen bulbs
- LED Lifetime: 50,000 Hours
- LED Beam angle: 110°
- 0.8 Amp draw at 12 Volt
- IP68
- Fits the previous cutout
- Dimensions: 6” W x 2-1/2” H x 1-3/4” D
- Cutout: 4-1/2” W x 1-1/2” H
Manufacturer : Scandvik
Manufacturer Part No : 41356P
UPC : 786142413563
