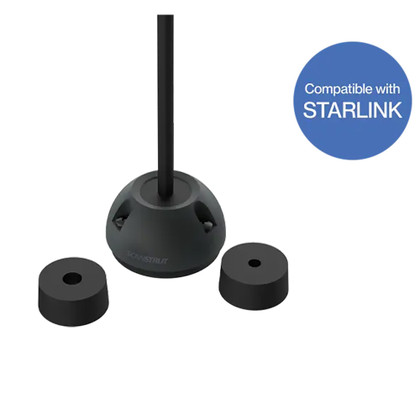

CAD DrawingCAD Drawing 2CAD Drawing 3DS16-SL Starlink Compatible Cable Seal - Black
The perfect cable seal to elevate your Starlink installation. This vertical entry cable seal, now compatible with Starlink, is IP68 certified and accommodates sizes from 4-6mm (0.16"-0.24"), and connectors up to Ø16mm (0.63").
Designed with ease of installation, the split bung ensures no wire cutting is required. The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal to form a 100% IP68-rated watertight seal.
Easy & Reliable Installation
Captive nuts make for easy assembly and allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split Bungs
The split-seal option makes installation even easier, as it does not require the connectors to be removed during installation.
Features:
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Split bungs for ease of installation
- Install connectors up to Ø30mm (1.18") in diameter
- Fully customizable with self-drill bung options
- 3 bungs- 1x blank, 1x 4mm, 1x 6mm
- Compatible with: Standard (Gen 3) / Standard, Enterprise (Gen 3)/ Enterprise & Mini
Specifications:
- Material: High Impact Plastic
- Height: 19mm (0.75")
- Color: Black
- Diameter of Cable Seal: 39mm (1.18")
- Diameter of Cable: 4 - 6mm (0.16"-0.24")
- Bungs: 1 x 4mm (0.16") / 1 x 6mm (0.23") / 1 x Self drill
Compatible with:
- Standard (Gen 3) / Standard
- Enterprise (Gen 3) / Enterprise
- Mini
Manufacturer : Scanstrut
Manufacturer Part No : DS16-SL-BLK
UPC : 5060114799684
