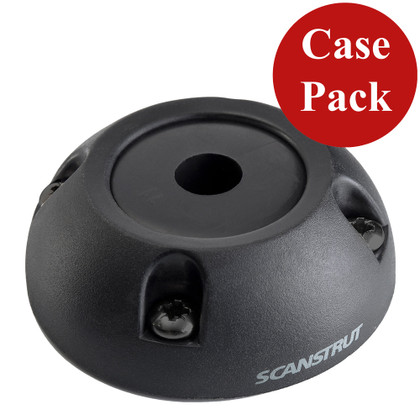

CAD DrawingCAD Drawing 2CAD Drawing 3DS30-P-BLK Vertical Cable Seal - Black *3-Pack
Scanstrut premium IP68 waterproof cable seal provides easy-fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables.
Features:
- Watertight installation - 100% waterproof with an IP68 rating
- Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
- No Need to Remove Cable Connectors - split-seal option does not require connector removal during installation.
- Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and the outer dome provides an additional water shield.
Technical Specifications:
- Fits cable size (diameter) - .35" to .55" (9 - 14 mm)
- Fits connector size up to 1.18" (30 mm) in diameter
- Height - .81" (20.5 mm)
- Color - Black
- Orientation - Vertical
- Material - ASA Plastic
In the Box:
- Cable seal
- Mounting hardware
- Installation manual
*Sold as a Three (3) Pack
Manufacturer : Scanstrut
Manufacturer Part No : DS30-P-BLK-3
