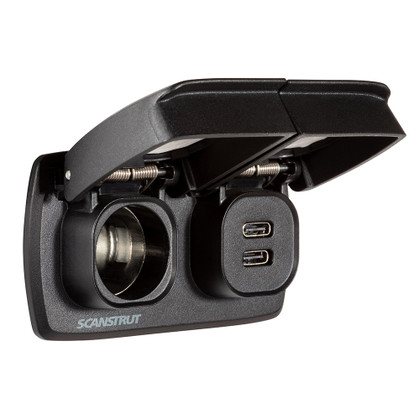

CAD DrawingCAD Drawing 2CAD Drawing 3Flip Pro Multi - Dual USB-C & 12V Power Socket
Combining the features of the high-power Flip Pro Max and 12V Power Sockets into a beautiful multi-power solution.When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.
Universal:
- Universal fit for any USB-C connectors
- Fast charge (60W max) up to 2 devices at a time
Marine Ready:
- IPX4 waterproof with the cover closed
- UV resistant
- 316 stainless steel hinge and spring
Electrical Information:
- 120 -150W max power (12V system only)
- Input voltage: 10-30V DC (12/24V System)
- Input current Max: 6A (10A fuse recommended)
Key Information:
- To maximize charge performance, use the cable supplied with your tablet, phone, etc. (C to C, or C-lightning)
- Phones charge at the same speed on either a 12 or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops
Manufacturer : Scanstrut
Manufacturer Part No : SC-MULTI-F1
UPC : 5060114798298
