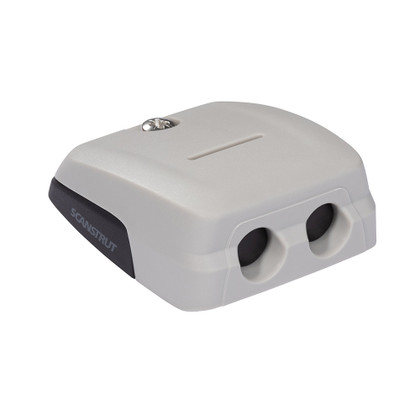

CAD DrawingCAD Drawing 2CAD Drawing 3Horizontal Double-Entry Cable Seal - Grey - Multiple Cable Combinations
The DS-HD10 double horizontal cable seal was designed to eliminate time-consuming and sub-standard routing of cables for rooftop lights and electronics. Scanstrut’s seal helps users achieve a sleek, easy-to-fit, and 100% watertight installation every time.
Features:
- Designed for two cables
- IP68 watertight seal
- Compact footprint - just 66.5mm (2.61 in.) W / 75.1mm (2.95 in.) L / 28.5 mm (1.12 in.) H
- Easy-fit cable routing that cuts down the installation time through wood, metal, and GRP
- Grey high-impact plastic
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- The low-profile construction is impact-resistant and provides extra protection from water
- Scanstrut’s materials have been selected to be UV-stable and hard-wearing
- No messy sealant on bungs
Install 2 Cables – Select Any Combination:
- 6mm x 2
- 7mm x 2
- 8mm x 2
- 9mm x 2
- 10mm x 2
- Blank x 2
Manufacturer : Scanstrut
Manufacturer Part No : DS-HD10
