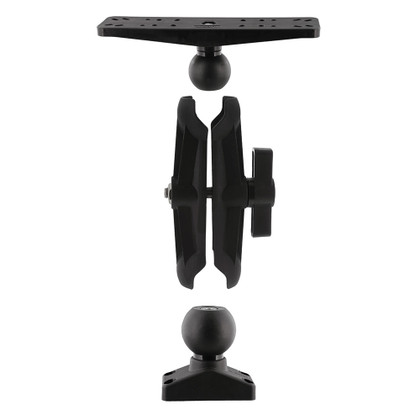

CAD DrawingCAD Drawing 2CAD Drawing 3170 2.25" Ball Mounting System for 10-12" Screens
Components:
- 171 2.25" Ball System Arm
- 175 2.25" Ball System Top Plate for 10-12" Screens
- 176 2.25" Ball System Base
171 2.25" Ball System Arm
Features:
- Engineering-grade nylon and Stainless steel construction
- Compatible with all 2.25″ Scotty ball system accessories
- The multi-hole top plate fits most popular electronics brands
- UV-resistant engineering-grade nylon construction
- Corrosion-resistant stainless steel hardware
- 2.25″ ball joints allow for 360 degrees of rotation and 180 degrees of tilt at both ends
- For 10-12″ fish finders
- Holds your device securely in extreme conditions
- Easy grip T-knob for loosening or tightening
- Designed for 1/4” fasteners (sold separately)
175 2.25" Ball System Top Plate for 10-12" Screens
Features:
- Engineering-grade nylon and Stainless steel construction
- Compatible with all 2.25″ Scotty ball system accessories
- The multi-hole top plate fits most popular electronics brands
- UV-resistant engineering-grade nylon construction
- Corrosion-resistant stainless steel hardware
- 2.25″ ball joints allow for 360 degrees of rotation and 180 degrees of tilt at both ends
- For 10-12″ fish finders
- Holds your device securely in extreme conditions
- Easy grip T-knob for loosening or tightening
- Designed for 1/4” fasteners (sold separately)
176 2.25" Ball System Base
Features:
- Engineering-grade nylon and stainless steel construction
- Compatible with all 2.25″ Scotty ball system accessories
Equipped with the classic Scotty 241 hole pattern, allowing it to be paired with these options:
- 449 Portable Clamp Mount
- 320 Adaptable Rail Mount
- 242 Rail Mount Adapter
- 340 Track Adapter
- 441 Backing Plate
- 341 Glue-On Mount Pad28 Gimbal Mount
Manufacturer : Scotty
Manufacturer Part No : 0170
