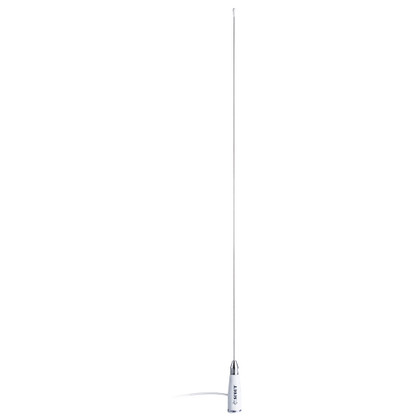

CAD DrawingCAD Drawing 2CAD Drawing 33.3' Stainless VHF Whip Antenna 3dB with 5M RG-58 Coax KS23A
Scout has designed the KS-23A antenna specifically for small boats and RIBs, which require a light, flexible, resistant, and high-performance antenna. The KS-23A brings all these features together in only 90 cm in length.
The electropolished stainless steel whip guarantees high flexibility and resistance; moreover, it can be easily removed by hand whenever needed. The design of the antenna is cool and smooth as needed for small boats and RIBs. Standard thread 1” x 14.
Features:
- Electropolished stainless steel whip – removable
- Extra flexible
- 5 m coaxial cable RG-58 CU MIL
Specifications:
- Frequency: 156-162 MHz
- Impedance: 50 ohms
- Electrical length: 1/2 λ
- V.S.W.R.: < 1,5:1
- Polarization: Vertical
- Gain: 3 dB
- Max power input: 50 W
- DC ground: Yes
- Whip material: Stainless steel
- Coaxial cable: 5 m RG-58 CU MIL
- Mounting: 1″ x 14 thread
- Length: 0,9 m (3′)
- Weight: 0,23 kilo
Manufacturer : Scout
Manufacturer Part No : PF AN NVHF00006T
UPC : 8052990121809
