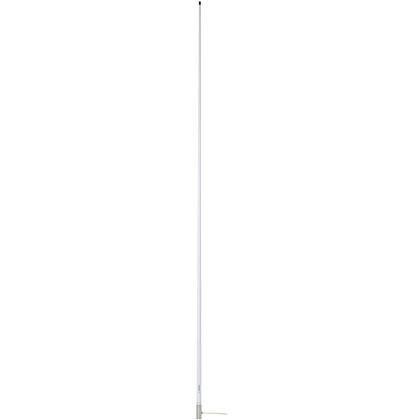

CAD DrawingCAD Drawing 2CAD Drawing 38' White VHF Antenna 6dB Stainless Steel Ferrule with 5M RG-58 Coax Includes PL-259 KS-42
The classical 2,4 m (8’) VHF marine antenna has been totally redesigned by Scout to set a new benchmark in terms of reliability and performance.
The KS-42 is built with a heavy-duty 1,5 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique. Standard thread 1” x 14, chrome brass ferrule. The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board. Suggested for medium and large-sized boats.
Features:
- Color: White
- Foam injected – 100% WATERPROOF – IP69
- 5 m coaxial cable RG-58 CU MIL
Specifications:
- Frequency: 156-162 MHz
- Impedance: 50 ohms
- Electrical length: 1/2 λ
- V.S.W.R.: < 1,5:1
- Polarization: Vertical
- Gain: 6 dB
- Max power input: 50 W
- DC ground: Yes
- Whip material: Fiberglass
- Coaxial cable: 5 m (16′) RG-58 CU MIL
- Mounting: 1″ x 14 thread
- Length: 2,4 m (8′)
- Weight: 0,86 kilo
Manufacturer : Scout
Manufacturer Part No : PF AN NVHF00007T
UPC : 8052990121816
