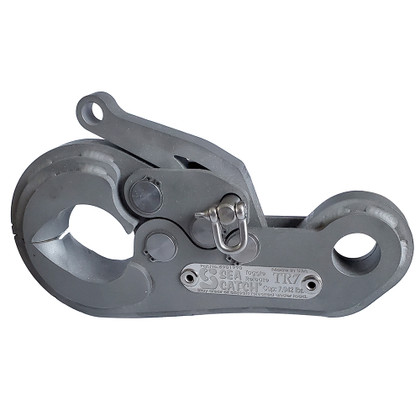

CAD DrawingCAD Drawing 2CAD Drawing 3TR7LM with Safety Pin - Large Mouth (1.6" mouth diameter)
The LM models (LM = Large Mouth) are provided with a front jaw enlarged to receive straps, cable or fiber line. Additional side plates at the jaw area are provided to spread the load and minimize chafing.
Features:
- Designed for use with a 5/8" shackle at rear of device
- Perpendicular or parallel release directions
- Hitch pin lock for device locking safety
- Computer generated parts precision-cut from aerospace grade stainless steel plate
- Low friction, low effort lanyard-style release for maximum user safety
- On load/off load releasing
- All parts 100% stainless steel
- No springs
- Break Load - 35,210 pounds and SWL 7,042 pounds
Product : SEA CATCH TR7LM W/SAFETY PIN W/ 5/8" SHACKLE
Manufacturer : Sea Catch
Manufacturer Part No : TR07LM
Product : SEA CATCH TR7LM W/SAFETY PIN W/ 5/8" SHACKLE
