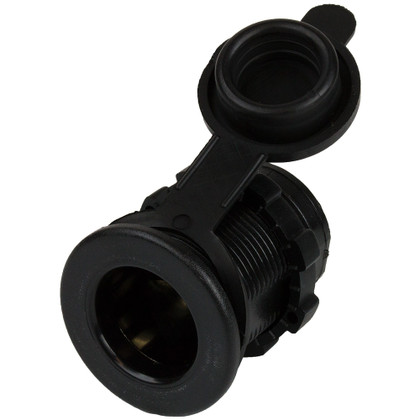

CAD DrawingCAD Drawing 2CAD Drawing 312V Deluxe Power Socket with Cap
The deluxe flush-mount power socket with a plug adds power virtually anywhere. Installation is as easy as drilling a 1-1/8 in. hole, inserting the socket body, tightening the locking nut, and connecting the wires.
Features:
- The plug features a 3-amp fuse and an LED light to indicate when it is powered
- Constructed of injection-molded nylon and ABS sockets with stamped brass plug contacts
Specifications:
- Maximum: 12VDC, 16A
- Diameter: 1-7/16 in.
- Height: 1-1/16 in.
- Length: 1-9/16 in.
- Weight: 0.04 lb.
Manufacturer : Sea-Dog
Manufacturer Part No : 426115-1
