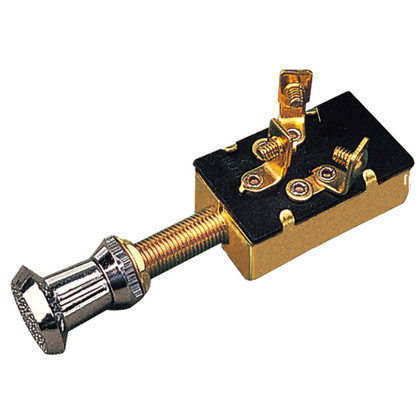

CAD DrawingCAD Drawing 2CAD Drawing 33 Position 1 Circuit Push-Pull Switch - Stamped Brass
This Three Position One Circuit Push-Pull Switch features one circuit (normally Off), three position: Off/On/On. Pushed in all the way, the switch is off. Pulled to the first position, the first circuit is activated. In the second position, both the first and second circuits are activated. Ideal for cabin or running lights. Maximum panel thickness: 1”. Constructed of corrosion-resistant stamped brass. 15A @ 12VDC.
Specifications:
- Volts: 12V
- Amps: 12 Amps
Manufacturer : Sea-Dog
Manufacturer Part No : 420410-1
