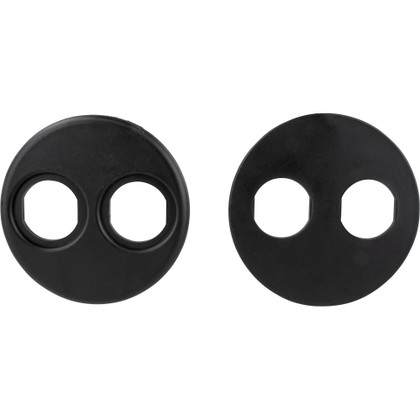

CAD DrawingCAD Drawing 2CAD Drawing 34" Gauge Power Socket Adapter Mounting Plate
This instrument hole adapter allows you to replace an unused 4 in. gauge with two new 1-1/8 in. style gauges. It is installed by placing the face plate in front of the dashboard and then inserting the socket/meter in the hole with the washer behind.
Features:
- Designed with D-flats to prevent gauges from spinning, the assembly is held in place by the socket/meter nut for a clean, finished look
- Constructed of UV-resistant injection-molded nylon
Specifications:
- Color: Black
- Face Plate Outer diameter: 3-3/4 in.
- Face Plate Inner Diameter: 1-3/16 in.
- Face Plate Thickness: 3/16 in.
- Height: 3-3/8 in.
- Washer Inner Diameter: 1-1/16 in.
- Washer Thickness: 1/8 in.
- Weight: 0.06
Manufacturer : Sea-Dog
Manufacturer Part No : 426103-1
