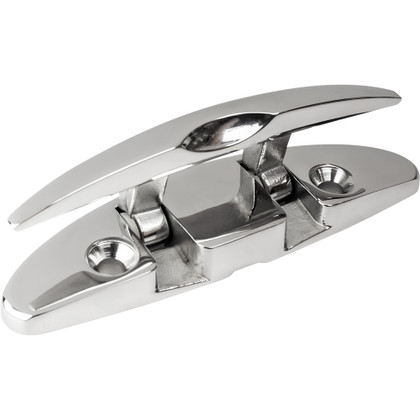

CAD DrawingCAD Drawing 2CAD Drawing 35" Oval Stainless Steel Folding Cleat
This oval folding cleat incorporates a positive locking feature with an audible click into the open/closed positions for easy rigging.
Features:
- Accommodates up to 1/2 in. line
- A low-profile ergonomic design makes for a smooth, sleek appearance when closed, limiting trip hazards
- Constructed of corrosion-resistant investment-cast 316 stainless steel
- Surface mounted: no cut-outs or hole saws required
- Installs with two 1/4-20 through bolts (not included)
Specifications:
- Entire Length: 5 in.
- Folding Cleat Length: 4-5/8 in.
- Width: 1-11/16 in.
- Exposed Cleat Height: 1/2 in.
- Width Between Bolts: 2-11/16 in.
- Fastener (inch): 1/4 in. FH
- Finish: Polished
- Weight: 0.29 lb.
Manufacturer : Sea-Dog
Manufacturer Part No : 041125-1
