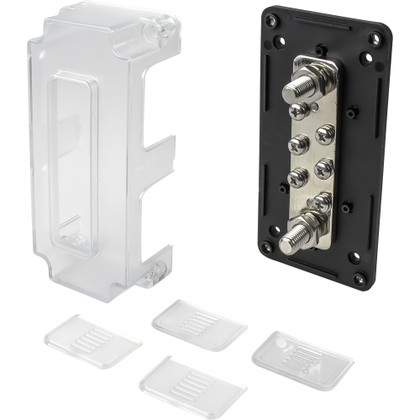

CAD DrawingCAD Drawing 2CAD Drawing 3Buss Bar with Cover - 6 Terminals
This bus bar is designed for positive or negative DC distribution or collection of AC neutral or safety ground circuits. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.
Features:
- Includes two 5/16"-18 stainless steel stud terminals and six #10-32 stainless steel screw terminals
- Installs with four #8 FH fasteners (included)
- 48VDC, 300A; 300VAC, 300A maximum
- CE and RoHS compliant
Specifications:
- Terminals: 6
- Length (inch): 5-1/2"
- Width (inch): 2-3/4"
- Depth (inch): 1-11/16"
- Max. Amps: 300
- Fastener: #8 FH
- Weight: 0.68 lb.
Manufacturer : Sea-Dog
Manufacturer Part No : 426692-3
