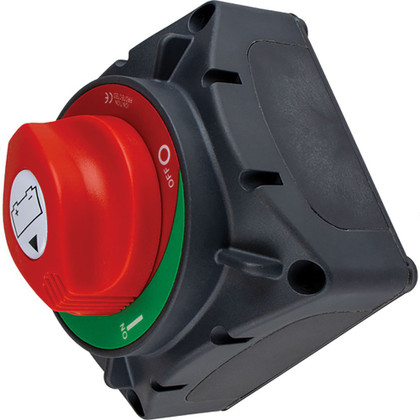

CAD DrawingCAD Drawing 2CAD Drawing 3Heavy Duty On & Off Battery Switch - 600A
The heavy-duty 422768 selector switch has 350A continuous and 1500 cranking amps to start a dual diesel engine. The battery selector switch isolates and/or combines two battery banks (422768). Installs with four #10 RH fasteners (not included).
Features:
- Can be surface or rear panel mounted
- Ignition protected
- Safe for installation on gasoline-powered boats
- Constructed of injection molded nylon with machined brass contacts
- CE certified
Specifications:
- Length (inch): 4"
- Width (inch): 4"
- Depth (inch): 3-5/8"
- Amps: 350
Manufacturer : Sea-Dog
Manufacturer Part No : 422768-1
