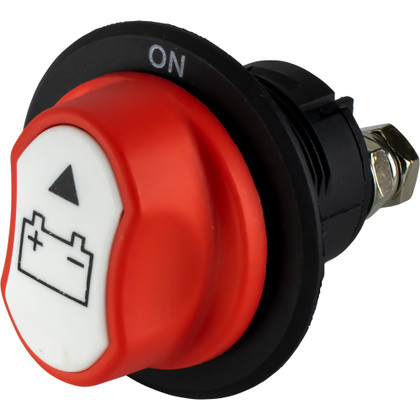

CAD DrawingCAD Drawing 2CAD Drawing 3Mini Battery Switch Key with Removable Knob - 32V & 100A
These Mini Battery Switches feature a removable knob for extra security. To remove, simply twist the cap to the OUT position and pull. Mini footprint makes it ideal for close quarters. The 422732-1 is rated at 100A continuous and 150A cranking amps. Installation is as easy as drilling a 1-1/8" hole for the 422732-1, inserting the socket body, tightening the locking nut, and connecting the wires.
Features:
- 3 Switch positions: On, off, and out
- Constructed of machined brass and injection molded nylon
Specifications:
- Switch Face Width: (inch) 1-1/8"
- Volts: 32
- Amps: 100
- Stud Diameter: (inch) 1/4"
Manufacturer : Sea-Dog
Manufacturer Part No : 422732-1
