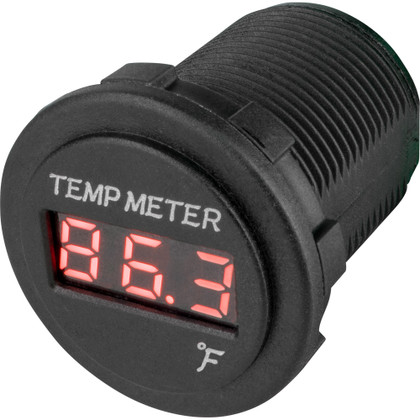

CAD DrawingCAD Drawing 2CAD Drawing 3Round Red LED Temperature Meter
The temperature meter includes a prewired temperature sensor with a 6-foot cable and it monitors temperature on a bright LED screen.
Features:
- Reverse polarity protected
- The same compact round size as a standard 12VDC receptacle, this temperature meter supports many installation options
- Constructed of injection-molded nylon
- Installation is as easy as drilling a 1-1/8-in. hole, inserting the socket body, tightening the locking nut, and connecting the wires
- IP67 waterproof rating
- 12-24VDC
Specifications:
- Diameter: 1-7/16 in.
- Length: 1-1/16 in.
- Height: 1-1/8 in.
- Volts: 12-24
- Temperature Range (Fahrenheit): -67 degrees to 248 degrees
- Weight: .02 lb.
Manufacturer : Sea-Dog
Manufacturer Part No : 421618-1
