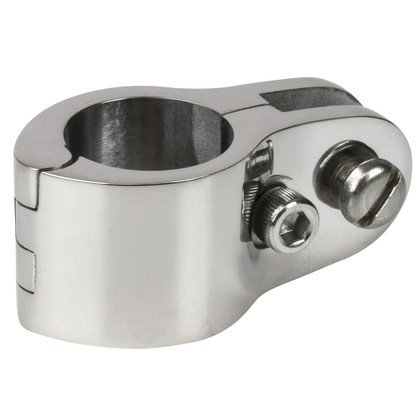

CAD DrawingCAD Drawing 2CAD Drawing 3Stainless 1" Hinged Jaw Slide with Bolt
These Slide Fittings are used as part of a Bimini top system to install a new Bimini top, add additional support arms to an existing one, or customize a cock pit or sun deck awning. Jaw Slides attach an eye end securely to support tubing. The set screw on the back allows you to quickly and easily adjust the placement of these slides where they are needed. Hinged Jaw Slides are ideal for mounting on handrails, or in applications where it is not possible or convenient to slide the fitting onto the tubing. Jaw Slides fit tubing from 3/4” – 1-1/8”. Set screws can be purchased separately (299999-1). Requires 1/8" Allen wrench to install. Constructed of corrosion-resistant investment cast 316 stainless steel.
Specifications:
- Tube OD: 1"
- Pin Size: 1/4"
- Weight: 0.38
Manufacturer : Sea-Dog
Manufacturer Part No : 270167-1
UPC : 035514270908
