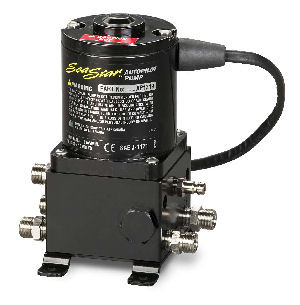

CAD DrawingCAD Drawing 2CAD Drawing 3The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2).
AUTOPILOT ? KEY FEATURES
-
Long life DC Motor (i.e. long life brushes)
-
Compact design
-
Simplified installation
-
Low power consumption
-
ABYC, CE?s and J1171 compliant
-
Superior corrosion resistance
-
Quiet operation
-
All mounting bracket displacement included
| Voltage | 12 volt |
| Fittings | Compatible w/ Standard Seastar Hose - Thread 9/16 in X 24 UNEF |
| Wire Details | |
| Length | 24 in |
| Gauge | 12 awg |
| Connector | None - Bare Leads |
| Oil Compatibility | Seastar Steering Fluid (MIL 5606) |
| Weight | 4.9 lbs (2.2 kg) |
| Pump Sizes | Type 1: 60 in3/min (no-load) |
| Type 2: 100 in3/min (no-load) | |
| Maximum Pressure | 1000 psi |
| Typical Current Draw | 12V Type 1: 4 ? 8 amps |
| (Depending on Application) | 12V Type 2: 5 ? 11 amps |
| Ram Capacity | |
| Type 1 | 4.9 in3 - 14 in3 |
| Type 2 | 14 in3 - 21 in3 |
