CAD DrawingCAD Drawing 2CAD Drawing 3Seaview CG2090 Black 90 Degree Horizontal Cable Seal

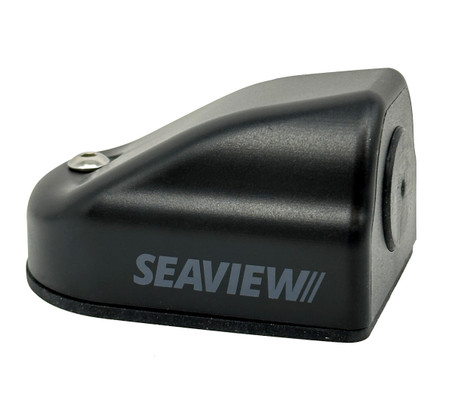

Model: CG2090The Seaview horizontal (90 degree) cable seal is a streamlined, waterproof seal that has a horizontal orientation. This cable seal fits cable diameters up to 0.53" (13.5mm). It has a plastic housing that is strong and impact-resistant with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with drill tubes allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approved
These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125"" of rubber around each hole.
