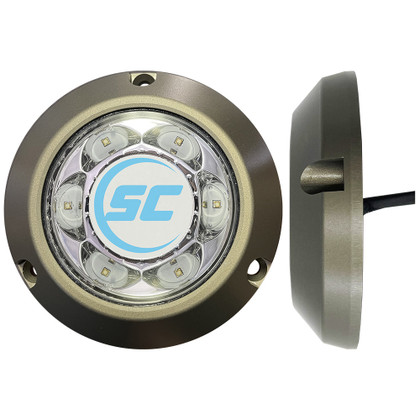

CAD DrawingCAD Drawing 2CAD Drawing 3SC3 Series Underwater Light - Great White
The SC3 underwater light provides your vessel with 24 watts of intense LED lighting. The SC3s are designed with a sub-compact 3” diameter hard anodized aluminum housing for under the waterline surface mounting. Single color or color-changing versions are available with variable brightness and a wide array of control options.
Features:
- Proprietary clear gel-filled design, injected through the entire unit - eliminates condensation and/or water intrusion under stress
- Tough, scratch-resistant, tempered glass lens with hard-anodized aluminum housing - impervious to acetone, solvents, and demanding marine environments
- Transient surge and reverse polarity protection — dramatically prolong unit life
- Thermal throttling technology - enables safe operation even out of water
- From simple on-off to full-featured lighting effects, the unit is enabled for a host of control interfaces
Specifications:
- Up to 3,000 lumens
- 120-degree beam angle
- 24-watt power draw
- 2 amps operating current draw @ 12V
- 10-30 volts input
- 3.6” (91.44mm) outside diameter
- IP68 fully submersible waterproof design
Includes:
- Lighting unit
- 3’ (1M) submersible grade cable
- 3 mounting screws
- 3 year standard warranty
Manufacturer : Shadow-Caster LED Lighting
Manufacturer Part No : SC3-GW-ALSM
