CAD DrawingCAD Drawing 2CAD Drawing 3Shadow Caster SC3 Blue/White Bronze Surface Mount
Model: SC3-BW-BZSM- Proprietary clear gel-filled design, injected through entire unit - eliminates condensation and water intrusion under stress
- Tough, scratch resistant, tempered glass lens with bronze housing - impervious to acetone, and solvents common in demanding marine environments
- Transient surge and reverse polarity protection - dramatically prolongs unit life
- Thermal throttling technology - enables safe operation even out of water
- Can be operated from a standard on/off switch
- 3 year standard warranty

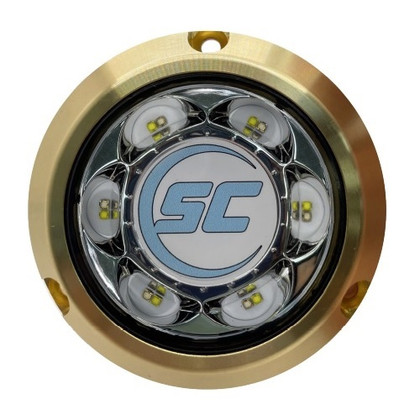

The SC3 underwater light provides your vessel 24 watts of intense LED lighting. The SC3’s are designed with a sub-compact 3.4" diameter bronze housing for under the waterline surface mounting.
Specifications| Lumens | Up to 3,000 lumens |
| Beam Angle | 120 degree beam angle |
| Current draw watts | 24 watt power draw |
| Current draw amps | 2 amps operating current draw @ 12 v |
| Voltage | 10-30 volts input |
| Diameter | 3.4"" (86mm) outside diameter |
| Waterprooof | IP68 fully submersible waterproof design |
What's in the Box:
- SC3-BW-BZSM Light
- 3’ (1m) submersible grade cable
- 3 mounting screws
