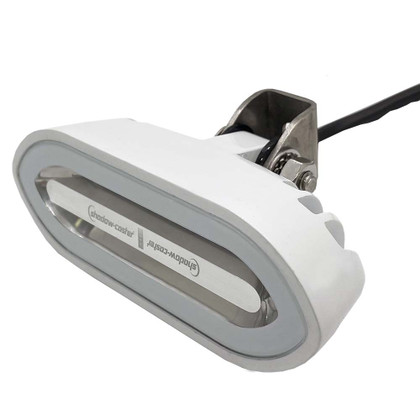

CAD DrawingCAD Drawing 2CAD Drawing 3SCM-SL Series Bracket Mount Spreader Light - White Housing - Full-Color
The Shadow-Caster Spreader Light is perfect for illuminating decks and other large areas of your boat or yacht. The flush mount version is great for mounting in T-Tops or use the bracket mount version to retrofit existing installations. The Shadow-Caster Spreader Light has a unique reflector design that spreads the light beams out to reduce glare. The Spreader Light comes in a black or white finish. It is available in 3 color output options: single color white, 2 colors (white and blue) as well as a full-color version. The brightness and color can be controlled with a standard switch.
Features:
- Soft start technology ramps the brightness up gently over 2 seconds.
- Power toggle feature to set brightness and change color
- True white LED for best color performance
- High-efficiency switch mode power supply
- Waterproof low-profile aluminum housing
- White or black finish
- Unique reflector design to reduce glare
Specifications:
- 1500 lumen output
- 60-degree beam angle
- 16-watt power draw
- 10-30 volts Input
- 1.4A at 12 volts, 0.7A at 24 volts
- 6200 Kelvin cool white color temperature
- 5” (127mm) overall width x 1.5”(38mm) height x 1.3” (33mm) mounting depth.
- IP67 waterproof design
- Durable glass lens
- The full-color version includes Shadow-NET® interface for controlling color
Includes:
- Spreader light
- Mounting screws and (2 screws) #4 X 0.5” SS3160H screws with flush mount version
- Quick start guide
- Standard 2 year warranty
Manufacturer : Shadow-Caster LED Lighting
Manufacturer Part No : SCM-SLB-CC-WH
UPC : 850024342026
