CAD DrawingCAD Drawing 2CAD Drawing 3Model: SCM10-EXT-CC-20
- Proprietary clear-gel-?lled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
- Tough, Polycarbonate lens
- Passivated Stainless Steel 316 material provides a durable corrosion resistant housing
- Transient surge and reverse polarity protection — dramatically prolongs unit life
- Thermal throttling technology — enables safe operation even out of water
- From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
- Select between 12 colors when using a switch or unlimited colors when using Shadow-NET® enabled products
- 2-Year Warranty

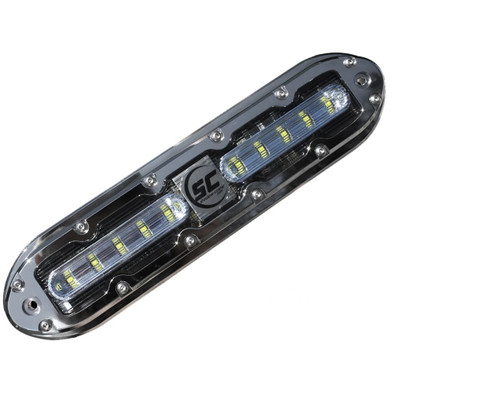

The SCM-10-EXT-CC extended color 10 LED underwater marine light provides your vessel with 42 watts of intense LED lighting. Easily switch between 12 standard colors or use a Shadow-NET® enabled controller to enjoy unlimited colors. The SCM-10-EXT-CC’s low pro?le design allows for many mounting locations. The unique stainless steel housing compliments the look of any trailer or lift kept boat.
Specifications| Lumens | Up to 3,750 lumens |
| Beam angle | 120° beam angle |
| LED | 10 RGBW LEDs |
| Power | 42 watts power draw, 3.5 amps operating current draw @ 12 volts |
| Voltage | 10-30 volts input |
| Dimensions | 10? (254 mm) x 2.4? (61mm) x 0.5? (13mm) |
| Enviromental | IP68 fully submersible waterproof design |
| Cable | 20' |
