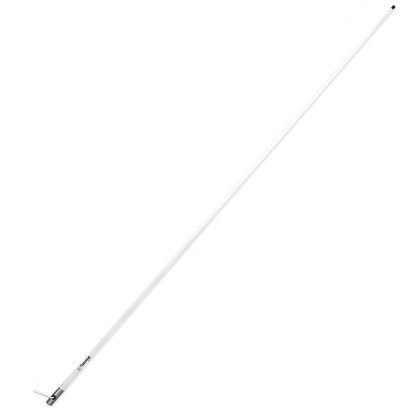

CAD DrawingCAD Drawing 2CAD Drawing 3AM/FM 8' 5235-XT Galaxy
This antenna reaches out to pick up those AM/FM signals from afar. Its 8ft length offers the extra reach, while matching Shakespeare's other Galaxy 8ft antennas.
Features:
- 8ft AM/FM Entertainment Band
- Copper elements for maximum range
- Stainless steel ferrule with standard 1in-14 thread
- Includes 20ft RG-62 cable with Motorola type plug installed
- One section
Specifications:
- Antenna Length: 8ft.
- Suggested mount: Shakespeare Style 4187 or Style 5187 Ratchet Mount (each sold separately)
- Frequency: AM, FM, and FM-stereo
- Twin to: Galaxy 8ft antennas
- Band: AM-FM
- Ferrule: Stainless steel
- Coax Supplied: 20 ft of RG-62
- Connector Supplied: Motorola type, installed
- Color/finish: Galaxy White
- Polarity: Vertical
- Impedance: 93 Ohms
- Includes: FME Cables
Manufacturer : Shakespeare
Manufacturer Part No : 5235-XT
UPC : 719441400156
