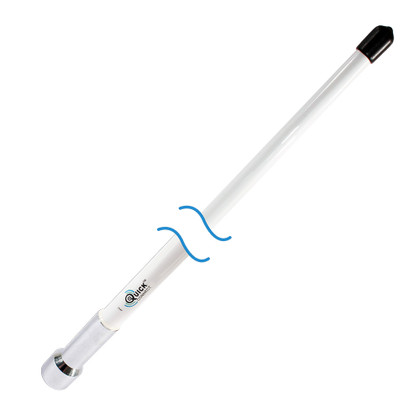

CAD DrawingCAD Drawing 2CAD Drawing 3VHF 4' QuickConnect™ 3dB for QCM Series Mounts
QuickConnect™ antennas stem from the popularity of the quick connecting feature on Shakespeare's high-end Phase III® marine antennas, the QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.
Features:
- QuickConnect™ System - Screw or unscrew the antenna to disconnect or connect
- Splash Protection Cap - Protects the connector on the mount when the antenna is disconnected
- Centerpin® PL-259 Connector - An easy crimp-on connector
- Base connector included for use with QuickConnect™ mounts only
- Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
- Maximum input power of 50W
- The bandwidth of 5 MHz within 2.0:1 VSWR
- Does not contain a built-in DC ground connection
Manufacturer : Shakespeare
Manufacturer Part No : QC-4-T
UPC : 719441173104
