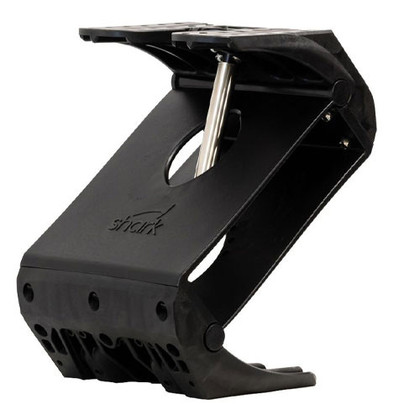

CAD DrawingCAD Drawing 2CAD Drawing 3FLEX Suspension Professional Series 9" Travel - 10g
All-purpose shock mitigation FLEX provides 225mm of ultra-smooth travel that is completely corrosion-proof, light, and tough. Combined with our stainless steel shock absorber, there are no pinch points or sharp edges, and it will withstand 10g impacts, making it safe in every way.
Specifications of the FLEX suspension unit:
- Simplicity: has only 3 unique parts
- Compatible with most third-party seats and attachments (including swivels) as well as Shark seats
- 225mm of progressive and ULTRA-SMOOTH travel
- Light: Only 9kg (20lb)
- 450mm overall height
- Compact: 300mm wide, 350mm deep
- Less fatigue: From 3-axis shock mitigation eliminates whiplash and takes stress off your body
- Non-corroding: soft-edged and non-marking, built with 316 stainless and Flexanite
- Super low maintenance
- Tested: 1 Million full 10g impacts
- Crash test rating: To HSC2000 Annex 10 requirements
- 3-year global manufacturer's warranty on all parts
- Independent tests reveal that Flex outperformed a well-known European brand
- Easy one-man installation
- Easily repairable: the shock can be replaced in under 2 minutes by one person
- Suspension can be bolted directly to your deck with 8 bolts (minimum)
Manufacturer : Shark Seating
Manufacturer Part No : FXAXAA00
UPC : 038132506305
