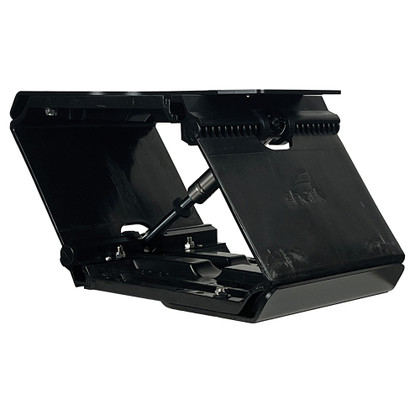

CAD DrawingCAD Drawing 2CAD Drawing 3FLEXpod HD Suspension with Firmer Shock & Stiffener
Toughened weight-saving HD stands for heavy-duty. 2 alloy plates are added to stiffen the suspension to allow for approved 3rd party seats. Available complete or as an upgrade kit.
Specifications:
- Weight: 4.3kg/9.5lbs
- Impact Protection: 6g
- Weight Capacity: 100kg/220lbs
- Travel: 150mm/6"
Specifications of the FLEX suspension unit:
- Simplicity: has only 3 unique parts
- Compatible with most third-party seats and attachments (including swivels) as well as Shark seats
- 225mm of progressive and ULTRA-SMOOTH travel
- Light: Only 9kg (20lb)
- 450mm overall height
- Compact: 300mm wide, 350mm deep
- Less fatigue: From 3-axis shock mitigation eliminates whiplash and takes stress off your body
- Non-corroding: soft-edged and non-marking, built with 316 stainless and Flexanite
- Super low maintenance
- Tested: 1 Million full 10g impacts
- Crash test rating: To HSC2000 Annex 10 requirements
- 3-year global manufacturer's warranty on all parts
- Independent tests reveal that Flex outperformed a well-known European brand
- Easy one-man installation
- Easily repairable: the shock can be replaced in under 2 minutes by one person
- Suspension can be bolted directly to your deck with 8 bolts (minimum)
Manufacturer : Shark Seating
Manufacturer Part No : PXFXAA00
UPC : 038132506299
