CAD DrawingCAD Drawing 2CAD Drawing 3Simrad B60 Xsonic 50/200kHz Bronze Thru-hull 20 Degree Tilted Element
Model: 000-16188-001- Depth and water temperature
- 600 W
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile protrusion extends only 5 mm (3/16"") outside the hull
- No effect on your boat’s running performance
- Bronze housing

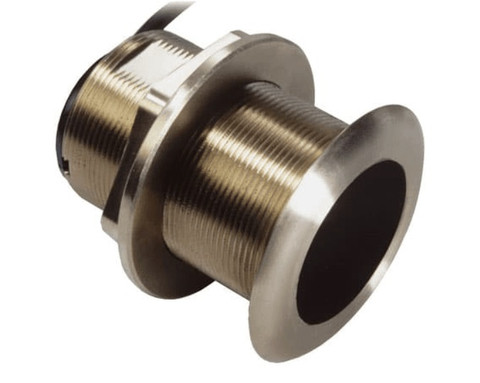

The B60 is a Bronze, thru-hull, dual-frequency, depth and temperature transducer. The ceramic element gives excellent echo returns for more accurate depth readings.
Specifications| Weight | 1.4 kg (3 lb.) |
| Recommended Boat Length | Up to 8 m (25') |
| Hull Material | Fiberglass or wood |
| Hull Deadrise | 16°-24° |
| Acoustic Window | Urethane |
| Hole Diameter | 60 mm (2-3/8"") (fiberglass or wood hull) |
