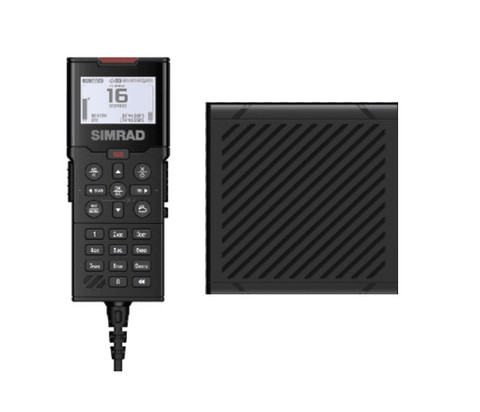

CAD DrawingCAD Drawing 2CAD Drawing 3Simrad HS100/SP100 Wired Handset and Speaker for S100/RS100B
Model: 000-15647-001- Style to match Simrad wireless handsets and MFD’s
- Large clear white dot matrix LCD
- Inverted LCD night mode for reduced light emission
- Dimmable to low output level for night operation
- Easy channel Scan and Favourites options
- Alphanumeric Keypad
- Clear Audio from Handset Speaker and Microphone
- Handset Station Naming
- 60 Second audio rewind
- Up to four speakers can be configured to one wired handset with an individual offset for each speaker.
- When a speaker is mounted further from a user than the wired handset or additional speaker, an offset can be applied to the speaker to achieve volume consistency.
- Speaker volume will be controlled by the wired handset the speaker is assigned to with the volume offset selected.
- Handset speakers can be turned off should the user only wish for external speaker audio.
| LCD display | FSTN 256x160 pixels, monochrome |
| Contrast control | Yes |
| Backlight synching | Yes, via NMEA 2000 network |
| Backlight | White LED; adjustable in 10 levels; Day and Night mode |
What's in the Box:
- HS100 Handset
- Cradle for HS100 & H100 VHF radio handsets
- SP100 Speaker
