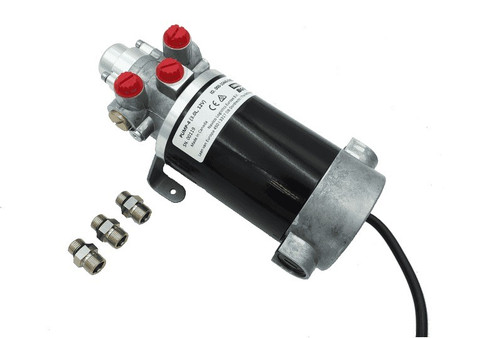

CAD DrawingCAD Drawing 2CAD Drawing 3Sirmad Pump-4 MKII 12v Hydraulic 3.0L Pumpset
Model: 000-15446-002- Reversible Pump
- High Flow Rate
- 12V DC
- 290-960 cc
- 17.7 - 58.5 cu. in.
Reversible hydraulic gear pump. 3.0L (183 cui) / min. For cylinder displacement of 290 - 960 cc (17.7 - 58.5 cu. in.). O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings. SteadySteer compatible. (NAC-3 / AC42 required).
What's in the Box:
- PUMP-4 MKII 12v
- 3 x ORB-5 to 9/16 UNF fittings
- Shipping Programs:
- Qualifies for Ground and 2 Day
- Prop 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- Expected Date:
- 2/25/2026
- Conditon:
- New unit
- Manufacturer:
- NAVICO INC
