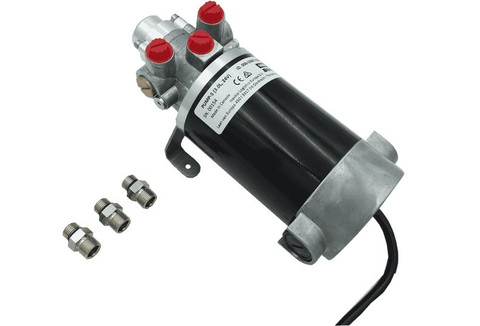

CAD DrawingCAD Drawing 2CAD Drawing 3Sirmad Pump-5 MKII 24v Hydraulic 3.0L Pumpset
Model: 000-15447-002- Reversible Pump
- High Flow Rate
- 24V DC
- 290-960 cc
- 17.7 - 58.5 cu. in.
- SteadySteer compatible.
PUMP-5: 24V DC: Reversible hydraulic gear pump. 3.0L (183 cui) / min. For cylinder displacement of 290 - 960 cc (17.7 - 58.5 cu. in.). O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings. SteadySteer compatible. (NAC-3 / AC42 required).
What's in the Box:
- Pump-5 24v
- 3 x ORB-5 to 9/16 UNF fittings
