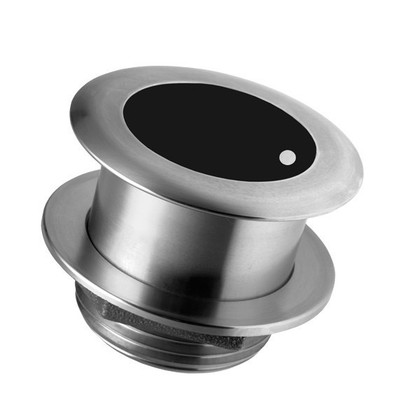

CAD DrawingCAD Drawing 2CAD Drawing 3Simrad SS175H-W Stainless steel CHIRP Thru Hull with 20 Degree Tilted Element
Model: 000-13782-001- 130-210 kHz High CHIRP with wide 25 deg beam for excellent fish targets
- Up to 310 m (1000 ft) range with High CHIRP
- 1 internal broadband ceramic
- Thru-hull with stainless steel housing
- Suitable for fiberglass and wood hulls
The SS175H-W is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8 m (25 ft) in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths.
- Code Map Mrp:
- 2
- Shipping Programs:
- Qualifies for Ground Program
- Prop 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- Conditon:
- New unit
- Related Items:
- AIRFF15K,LOW00012571001,AIR164WR2,AIR175WR4
- Manufacturer:
- NAVICO INC
