CAD DrawingCAD Drawing 2CAD Drawing 3Verado Autopilot Fitting Kit for MK2 Pumps
Verado steering system autopilot fitting kit for MKII Pumps 1, 2, 3, 4 & 5. Fitted with Verado O-Ring Face Seal fittings use don Verado steering systems.
Fitted hose kit designed for simplified Verado Autopilot installations, reducing the incidence of faulty field terminated hydraulic hoses and incorrect installation layouts.

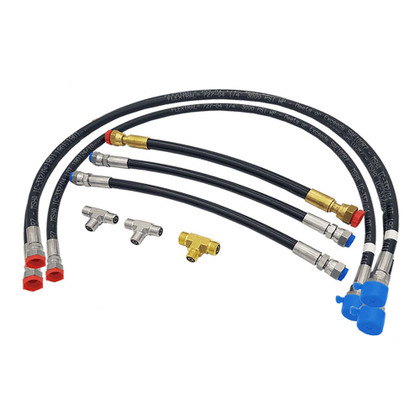

Kit Contains:
- 3 x Hose ¼” 3000 PSI max, 915 mm (36"), 9/16” UNF to 9/16” ORFS
- 2 x Hoses ¼” 3000 PSI max, 380mm (15”), 9/16” ORFS to 9/16” ORFS
- 1 x Return Hose 3/8” 2250 PSI max, 390mm (15.4”),11/16” ORFS to 11/16” ORFS
- 2 x T Connectors: Stainless: 9/16” ORFS
- 1 x T Connector: Brass: 11/16” ORFS > 11/16” ORFS > 9/16” ORFS
Manufacturer : Simrad
Manufacturer Part No : 000-15943-001
UPC : 9420064127788
