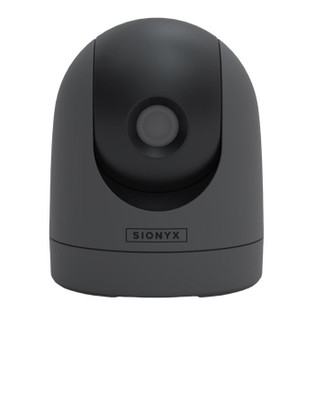

Sionyx Nightwave Ultra Low-light Marine Camera - Gray Hosuing

Model: C014700

<1 millilux moonless starlight night vision
44 degree field of view
Rugged and water-resistant (IP67 rated)
Connect directly to a major brand MFD
Flexible installation - Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware or Temporarily mount with a 1/4""-20 mount interface for use with standard mounts
12Vdc power (fused)
NTSC/PAL Analog video connection (SMA, BNC, or RCA)
Manual vertical tilt adjustment

Nightwave is an ultra low-light marine camera built around SIONYX’s patented Black Silicon BSI CMOS sensor. It allows all levels of mariners to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras — navigating safely, avoiding collisions, and maximizing time on the water.

Featuring <1 millilux moonless starlight sensitivity, with Nightwave you will see well beyond human eyesight and detect man-sized objects at 150 meters. The 44 field of view increases situational awareness so you can spot unexpected markers, vessels, land formations and more. IP67 rated, submersible to 3 ft for 30 minutes, you can safely use Nightwave in inclement weather conditions.

With flexible mounting options and easy setup, Nightwave can seamlessly integrate with major brand MFDs via the analog video output, displaying clear color digital night vision.

Get Mobile with your Nightwave. The SIONYX Nightwave App allows your mobile device to remotely change the settings on your Nightwave. Availble on The App Store.

Specifications

CAMERA
SENSOR TYPE	XQE1350 BSI CMOS
RESOLUTION	1280 X 1024
FRAME RATE	60 HZ
HORIZONTAL FOV	44°
VISIBLE SPECTRUM	400-1200NM
FOCUS RANGE	10M TO INFINITY
LENS	16MM F/1.4
SYSTEM
VIDEO OUT	NTSC
VIDEO CONNECTION	SMA / BNC/ RCA
WIRELESS COMMUNICATIONS	WIFI + BLUETOOTH
POWER IN	12V DC
POWER CONNECTION	TINNED COPPER WIRE
ENVIRONMENTAL
INGRESS PROTECTION	IP67 WATER/DUST RESISTANT
SHOCK & VIBRATION	IEC60945 V15G , H:9G] , IK08
OPERATING TEMPERATURE	-20°C TO +50°C
STORAGE TEMPERATURE	-20°C TO +80°C
RANGE PERFORMANCE
DETECT MAN-SIZED OBJECT	150m Clear weather 1/4 moon
PHYSICAL
WEIGHT	870 G [1.9 LBS]
DIMENSIONS	127 X 127 X 152 MM [5 X 5 X 6 IN]
MOUNTING OPTIONS	TRIPOD OR RAMMOUNT
MATERIAL	MATERIAL UV RESISTANT POLYCARBONATE
