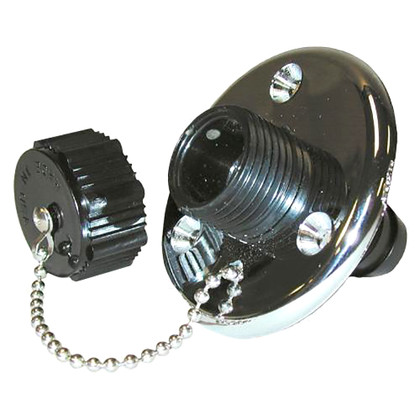

CAD DrawingCAD Drawing 2CAD Drawing 3Washdown Valve with Chrome Base
A bulkhead-mounted washdown fitting that is inexpensive, functional, easy to install, and rust-proof. This injection-molded, chrome-plated ABS fitting is 2 1/4" in diameter and mounts in a 1 1/4" diameter hole with 3 countersunk screws.
Features:
- A barbed hose fitting connects 3/4 in. inside-diameter tubing
- Standard hose threads with a protective cap that has a retaining strap are standard
- Chrome-plated ABS flange
- Injection-molded, UV-stabilized, and rust-proof
- Standard garden hose thread outlet
- The inlet fits 3/4 in. marine hose
- Protective cap with retainer
- The flange dimension is 2-1/4 in. OD
- Installation in a 1-1/4" hole
- Straight fitting with shutoff valve
Manufacturer : T-H Marine Supplies
Manufacturer Part No : WDV-1CP-DP
