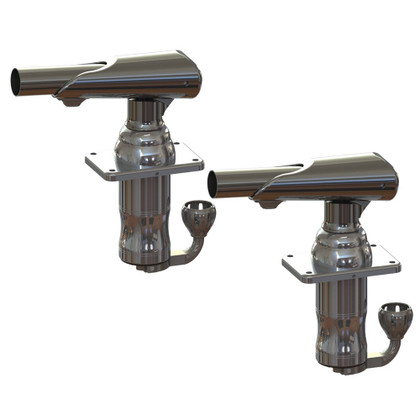

CAD DrawingCAD Drawing 2CAD Drawing 3Grand Slam 300 Outrigger Mount for 1-1/2" Outrigger
Single-Handle Operation is Here! Introducing the Grand Slam 300 – a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount that delivers enhanced safety and performance with smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles using the GS-300's ergonomic crank handle, which locks flush into the base. The Mount's attractive, all-metal design means no plastic components, a greater water seal, and increased protection from the elements. The GS-300 pairs with TACO’s award-winning Open Water Internal & Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22' with an underside pin-locking connection – eliminating the need for port and starboard designations.
Features & Benefits:
PIN-LOCKING ARM
- No port or starboard designation
- Underside locking pin connection
- Arm lifts to 46.5º from the horizontal position for kite fishing and dock clearance
- Pairs with 1-1/2" DIA Outrigger Poles up to 22'
- Can be used with Outrigger Base Reducer for 1-1/8” DIA poles
HANDLE
- Stainless-steel, ergonomic, single-hand crank handle with ball bearing
- Enables lift and rotation of outrigger poles from the safety of the deck
- Unique, locking flip handle
- Keeps the handle knob on the bottom when lifting or rotating the outrigger
- Provides full torque control and safety of deployment at all times
- Robust, dual-detented lifting crank handle locks flush into base
MOUNT
- Ideal for boats 25' to 40'
- Constructed from cast stainless steel and machined aluminum for a stronger, lighter base
- Each mount weighs 15 pounds (30 pounds per pair)
- Safety detents prevent uncontrolled rotation when deploying outrigger poles
- Allows a controlled 180° rotation, if needed
- The locking head eliminates the downward creep of outrigger poles
- Equipped to handle the torque and whip generated by poles up to 22’
- Includes mounting hardware for easy installation
- The base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems
- Backing plates (BP-0300) sold separately
- 3-year limited warranty
Specifications:
- Weight: 30lbs
- Sold as a pair
Manufacturer : TACO Marine
Manufacturer Part No : GS-300
UPC : 631164091605
