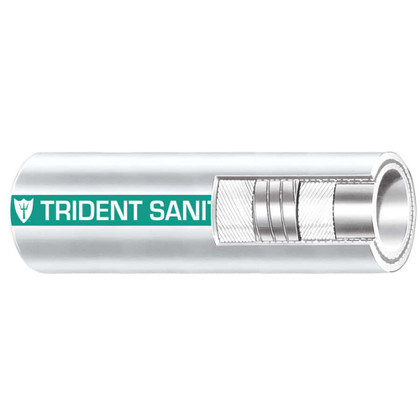

CAD DrawingCAD Drawing 2CAD Drawing 31-1/2" Premium Marine Sanitation Hose - White with Green Stripe - Sold by the Foot
Trident Premium Sanitation Hose resistant to odor permeation. Simply the BEST solution for marine environments, built with EPDM rubber to ensure the overall performance and resistance to odor permeation that you would expect in a sanitation hose.
Features:
- Sold by the foot
- Resistance to Odor Permeation and winterizing with antifreeze
- With wire helix between 2-ply reinforcement, this hose has excellent bend radius, flexibility, and fitting acceptance and retention
- This makes for easy installations with no heat gun or lubricant necessary
- 10 Year Warranty
Application:
- Premium Sanitation Hose for all head & holding tank connections
- NOT for potable water
Construction:
- Tube & Cover: EDPM/SBR Rubber
- Color: White with Green Stripe
- Reinforcement: Polyester reinforcement + spring steel wire helix
- Temperature Range: -20F-220°F (-29°C-104°C)
Specifications:
- Inner Diameter: (inch) 1-1/2" / (mm) 38.1
- Outer Diameter: (inch) 2 / (mm) 50.8
- Working Pressure: (Psi) 60 / (bar) 4.1
- Weight: (Lb./50ft.) 44 / (Kg/m) 19.9
- Bend Radius: (inch) 3" / (mm) 76.2
*Burst Pressure is 4 x Working Pressure
Manufacturer : Trident Marine
Manufacturer Part No : 102-1126-FT
