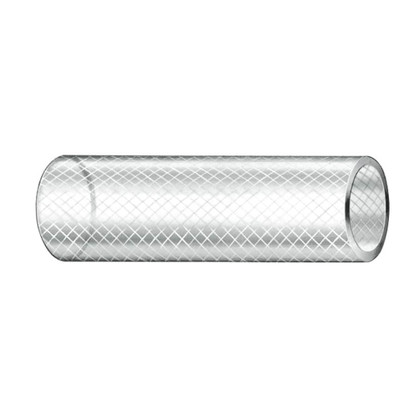

CAD DrawingCAD Drawing 2CAD Drawing 31" Heavy Duty Reinforced PVC (FDA) Hose - Drinking Water Safe - Clear - Sold by the Foot
Clear FDA-grade PVC hose with heavy-duty nylon reinforcement provides excellent flexibility and bend radius.
Features:
- Sold by the foot
- Good flexibility and bend radius
- Resists odor, taste, and up to 250 PSI/WP (depending on I.D. size) @ 70°F (21°C)
- This hose is safe for use with drinking water
Applications:
- For pressurized drinking water systems and many other uses
- For cold and hot tap water
Construction:
- Tube: Plasticized PVC (FDA)
- Color: Clear with white nylon reinforcement
- Reinforcement: PVC and HD nylon reinforcement
- Temperature Range: 20°F to 150°F (-7ºC to 66ºC)
Specifications:
- Inner Diameter: (inch) 1" / (mm) 25.4
- Outer Diameter: (inch) 1.185 / (mm) 30.1
- Burst Pressure: (PSI @ 70ºF) 25.7 / (bar) 1.77
- Working Pressure: (PSI @ 70ºF) 90
Bend Radius: (inch) 4" / (mm) 101.6
Manufacturer : Trident Marine
Manufacturer Part No : 161-1006-FT
