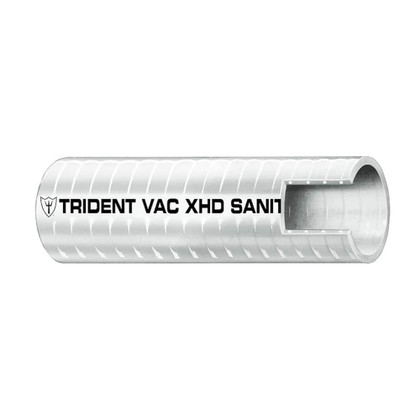

CAD DrawingCAD Drawing 2CAD Drawing 31" x 50' Box VAC XHD Sanitation Hose - Hard PVC Helix - White
Trident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. A hard PVC helix gives good flexibility and bend radius. No cuffs are required.* Don't use with alcohol, anti-freeze, petrochemicals, or solvents. Self-draining installations are recommended for the longest odor-free service.
Specifications:
- Tube & Cover: Hard PVC helix
- Color: White
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-48°C)
- Boxed: 50ft. / (15.2m)
- Inner Diameter: (inch) 1" / (mm) 25.4
- Outer Diameter: (inch) 1.262" / (mm) 32.1
- Working Pressure: (Psi Vac In./Hg) 28
- Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52
- Bend Radius: (inch) 3" / (mm) 76.2
*Burst Pressure is 4 x Working Pressure
Manufacturer : Trident Marine
Manufacturer Part No : 148-1006
