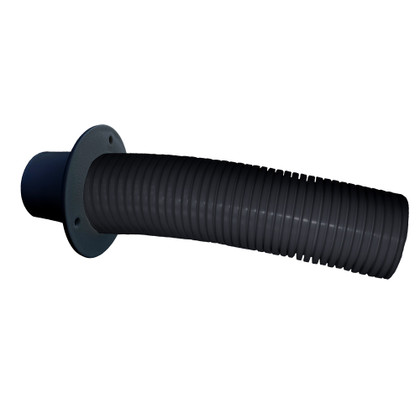

CAD DrawingCAD Drawing 2CAD Drawing 310' Black Stern Flex Hose with Transom Flange
This Trident Stern Flex Hose is black (Trident Marine 129 series) and contains wire, control cables, and hoses between the transom and outboard engine(s). Connects to Trident flange part #142-2000.
Features:
- Highly resistant to crushing, abrasion, and UV and has good resistance to chemicals
- Extraordinary flexibility
Construction:
- Hose: Lightweight polyethylene copolymer
- Reinforcement: Integral Polyethylene Helix
- Temperature Range: -40°F to 140°F (-40ºC to 60ºC)
Specifications:
- Color: Black
- Inner Diameter: (inch) 2” / (mm) 50.8
- Outer Diameter: (inch) 2.35” / (mm) 60
- Bend Radius: (inch) 3.5” / (mm) 88.9
- Weight: (lb/100 ft.) 26 / (kg/m) 11.8
Manufacturer : Trident Marine
Manufacturer Part No : TFK-10
UPC : 704917017846
