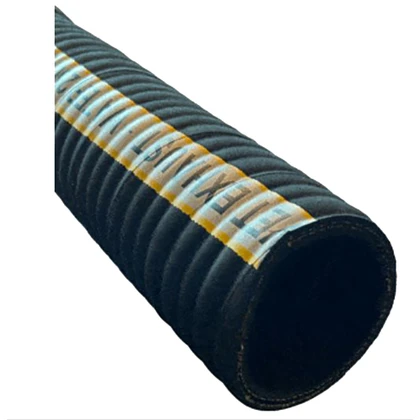

CAD DrawingCAD Drawing 2CAD Drawing 32" Extra-Flex Corrugated Marine Wet Exhaust Hose - Sold by the Foot
Trident Extra-Flex corrugated marine wet exhaust hose with EXTRA flexibility for easier installations on tight bends for longer connections. Thick tube and cover with wire helix between 2-ply reinforcement. Exceptional flexibility and bend radius. Resists heat, ozone, exhaust fumes, panting, and collapse. Exceeds (SAE J2006-R2, and ABYC & NMMA P-1 exhaust standards). Lloyd’s Registry Type Approved.
Corrugated Wet Exhaust and Water Marine Hose offers the best performance with an incredible bend radius and high-temperature EPDM Rubber compounds. This enables it to handle higher temperatures while providing longer life and durability than its competition. It exceeds SAE J2006-R2, ABYC, and NMMA P-1 exhaust standards and is Lloyd’s Registry Type Approved. Black High Temp EDPM Rubber 250°F (121°C) Max. continuous.
Features:
- Black High Temp EDPM Rubber 250°F (121°C) Max.
- Sizes: 1 1/2" to 8", 38mm to 203.2 mm
- Colors: Black with White stripe with yellow edges
- Packaging: 6.25' to 12.5' (1.9-3.8m) lengths, 50’ (15m) Coils
Manufacturer : Trident Marine
Manufacturer Part No : 252F-2006-FT
