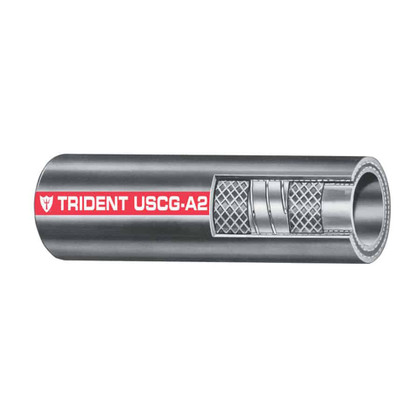

CAD DrawingCAD Drawing 2CAD Drawing 32" Type A2 Fuel Fill Hose - Sold by the Foot
Trident 2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).
Features:
- Sold by the foot
- This hose is built with the best fuel, fire, and age-resistant formulation
- Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
- Also, provides excellent bend-ability
Applications:
- Marine Fuel Hose for fill and vent plus diesel distribution
- Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel
Construction:
- Tube & Cover: NBR / Neoprene
- Reinforcement: High tenacity polyester 2 spiral, spring steel helix
- Temperature Range: -20°F to 212°F (-20ºC to 100ºC)
Specifications:
- Inner Diameter: (inch) 2" / (mm) 50.8
- Outer Diameter: (inch) 2.48 / (mm) 63.5
- Wall: (inch) 0.25 / (mm) 6.4
- Working Pressure: (psi) 50 / (mpa) 0.345
- Bend Radius: (inch) 7.0" / (mm) 178
*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved
Manufacturer : Trident Marine
Manufacturer Part No : 327-2006-FT
