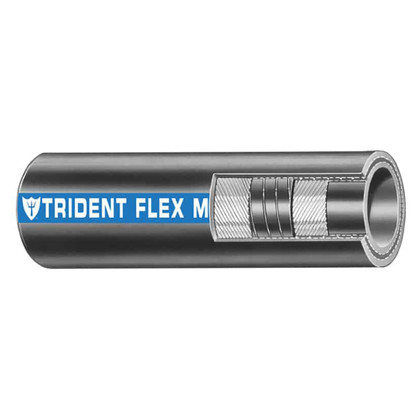

CAD DrawingCAD Drawing 2CAD Drawing 33/4" x 50' Coil - Flex Marine Wet Exhaust & Water Hose - Black
Trident Flex wet exhaust hose for longer bent connections. In smaller I.D.’s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.
Features:
- Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius
- Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved
Application:
- In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses
Construction:
- Tube & Cover: High temp EDPM rubber
- Color: Black with blue stripe
- Reinforcement: Multi-ply, high-tenacity polyester, steel helix
- Temperature Range: 250°F (121°C)
- Length: 50’ (15.24m)
Specifications:
- Inner Diameter: (inch) 3/4" / (mm) 20
- Outer Diameter: (inch) 1.15" / (mm) 29
- Working Pressure: (Psi) 100 / (bar) 6.9
- Bend Radius: (inch) 1" / (mm) 25
- Weight: (Lb./50ft.) 23 / (Kg/m) 10.3
*Burst Pressure is 4 x Working Pressure
Manufacturer : Trident Marine
Manufacturer Part No : 100-0346
