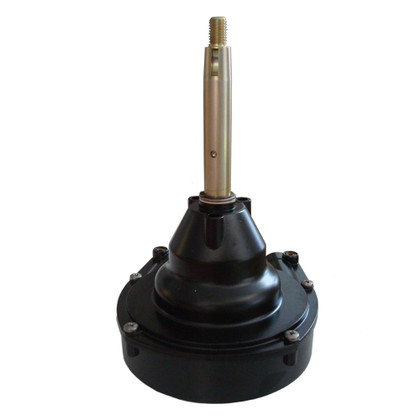

CAD DrawingCAD Drawing 2CAD Drawing 3T91 Single Rotary Steering Helm
This is a Uflex single cable steering helm made of high-quality materials.
Features:
- Specifically designed for high-performance and high-efficiency applications
- Corrosion resistant materials
- Particularly suitable when clearance is limited
- Minimal feedback
- T91 steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
- For boats faster than 50 mph, our hydraulic steering systems are recommended
- Bezel not included - to be ordered separately
- T91 is also available in a package with FOURTECH
- Exceeds EN 28848 safety standards
- Exceeds ABYC P17 safety standards
Specifications:
- Standard 3/4” tapered shaft
- Lock-to-lock steering wheel turns approx 4,2
- Max. steering wheel diameter 16-inches (406 mm)
Manufacturer : Uflex USA
Manufacturer Part No : T91
