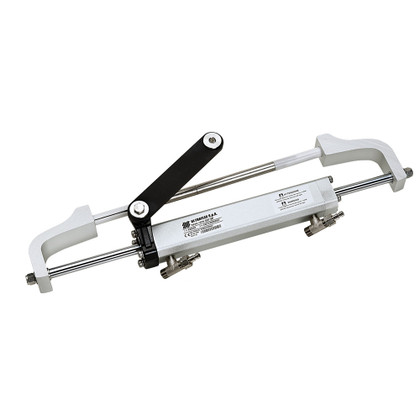

CAD DrawingCAD Drawing 2CAD Drawing 3UC81-OBF Front Mount Outboard Cylinder
UC81 OBF – Balanced: the number of turns lock-to-lock is equal port to starboard and vice-versa. Front-mount cylinder for outboard engines up to 115 hp. Replaceable end caps.
Specifications:
- Volume: 81 cc - 4.9 cu. in
- Output force: 222 kg (489 lbs)
- Inside diameter: 27,4 mm (1.08")
- Stroke: 186 mm (7.3")
- Fittings for high-pressure flex hose: 3/8"
- Bleed fittings: DN5 quick connect
Manufacturer : Uflex USA
Manufacturer Part No : UC81-OBF
UPC : 702755042587
