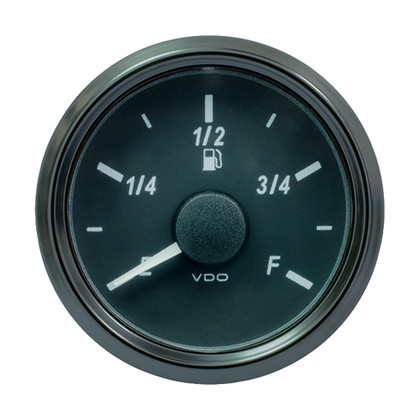

VDO SingleViu 52mm (2-1/16") Fuel Level Gauge - E/F Scale 240-33 Ohm

VDO SingleViu 52mm (2-1/16") Fuel Level Gauge - E/F Scale 240-33 Ohm

No reviews yet Write a Review
$97.33
SKU:
CW85893
Weight:
1.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

SingleViu 52mm (2-1/16") Fuel Level Gauge - E/F Scale 240-33 Ohm

SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes.

These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.

*240 - 33 Ohm Sender Required.

Features:

  • 240-33Ω Default Input
  • RGB LED Illumination (default illumination set to White)
  • Water Resistant Front & Rear
  • Includes Wire Harness
  • Molex MX 150 8 Pin Connector
  • Voltage 12-24V
  • Spin-Lok™ Mounting Hardware
  • Analog Input

∗Sold as an Individual


Product : VDO SINGLEVIU 52MM (2-1/6") FUEL GAUGE - 0-90 OHM
Manufacturer : VDO
Manufacturer Part No : A2C3833130030
Product : VDO SINGLEVIU 52MM (2-1/6") FUEL GAUGE - 0-90 OHM
