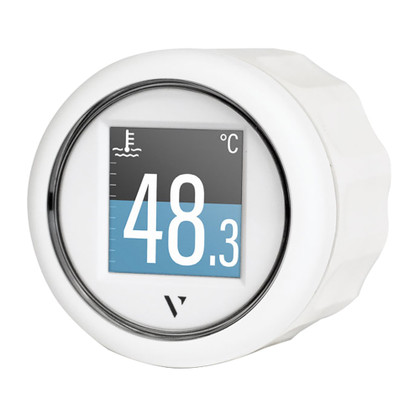

CAD DrawingCAD Drawing 2CAD Drawing 352mm (2-1/16") ViewLine Flex Gauge - J1939 - White
Veratron's VL Flex 52 - J1939 was designed to meet the rigorous demands of commercial use. Supporting a broad range of sensors, the all-in-one round gauge is singularly unique in that it can display two sets of diesel engine data simultaneously and is easily configured using a mobile device and the companion Veratron app.
The VL Flex 52 - J1939 supports input from analog sensors as well as J1939 and LIN 2.0. The simple but effective graphic design can be set up in a single or dual layout, pulling from up to 30 sets of data. It can display a large numerical value and colored bar graph that are viewable in any light condition due to its sun-readable PMMA lens with anti-glare.
*VL Flex Configurator App (Android or iOS) has to be downloaded - no charge
Supported Configurations:
- Wheel Speed - Engine Load - Fuel Level - Oil Level - Oil Pressure - Boost Pressure - Coolant Pressure
- Coolant Temp - Battery Current - Brake Pressure - Gear Oil Level - Gear Oil Pressure - Battery Potential
- Air Temperature - Exhaust Temperature - Oil Temperature - Gear Oil Temperature - Fuel Rate
- Fuel Economy - Engine Speed - Odometer - Engine Hours - Total Fuel - Clock - DEF/BLUE Level
- Battery SOC/SOH - Battery Temperature - Battery Autonomy
Features:
- 1.44” sun-readable color TFT display
- J1939 Interface
- Front lens with anti-glare and anti-fog treatments
- 52mm (2-1/16") mounting diameter
In the Box:
- VL Flex J1939
- 52mm Mounting SpinLock
- 8 Pole Cable
- Safety Instructions
*Sold as an individual
Manufacturer : Veratron
Manufacturer Part No : B00110901
UPC : 7640190290008
